Joystick Control 360° 2000mm CCTV Pipe Inspection Equipment

Joystick Control 360° 2000mm CCTV Pipe Inspection Equipment

CCTV Pipe Inspection Equipment Introduction

The CCTV Pipe Inspection Equipment is a must have for any homeowner, contractor and even professional! It eliminates the needs of tearing into drywall to locate leaks, pipes, or electric lines. The Pipeline Inspection Camera System features only the highest quality components such as true premium grade Video Wire, Stainless Steel parts and Connectors for video connections.The Drain/Sewer Industrial Endoscope boasts 2.4G Wi-Fi and accepts DVR by phone while recording for future playback. The portable aluminum carry case,which also stores all items for transport and when in-use. Buy a Video Snake today to avoid tomorrows plumbing problems.

CCTV Pipe Inspection Equipment Features:

1. Laptop and joystick control

2. Light and easy transportation

3. Anti-fogged camera lens

4. Brightless adjustable

CCTV Pipe Inspection Equipment Technical Parameter

Controller		1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. 4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000		1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size
Cralwer TVS-800		1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120		1,Manual cable drum 2,standard length: 120m
Joystick		(1)high beam brightness adjustment (2)camera control, left/right/up/down (3)camera zoom in/out/focus near/far/center (4)power switch (5)elevator up/down/clutch/rear sight/camera light adjustment (6)crawler direction control, forward/backward/left/right (7)crawler speed control (8)USB (9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected

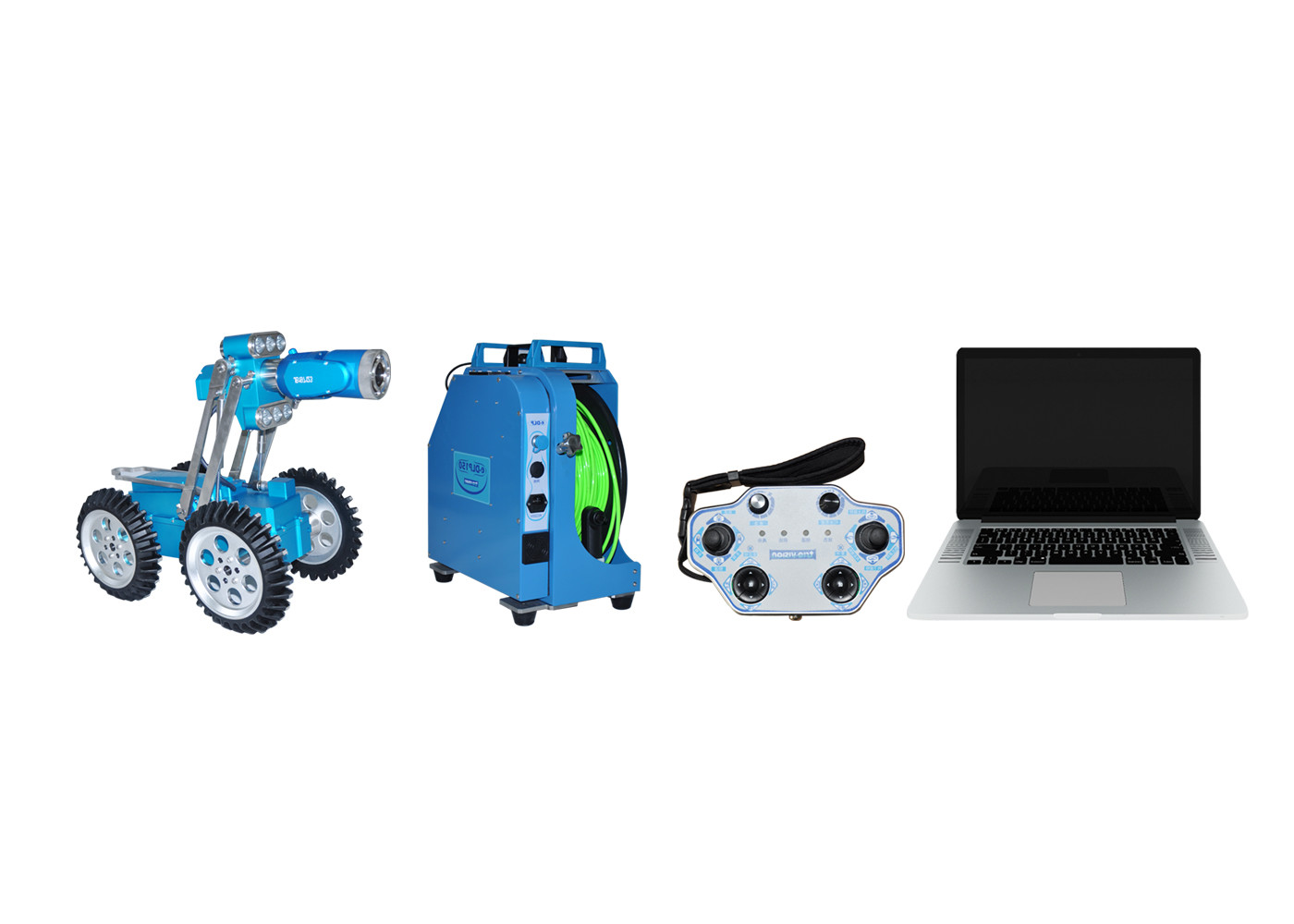

System Configuration
