|Name:||CCTV Pipe Inspection Equipment||Pipe Diameter:||125-20000mm|
|Camera Head:||Pan & Tilt||Report:||Inclination, Slope|
|Cable Drum:||Automatic, 300m||Feature:||Waterproof|
20000mm drain inspection camera,
Sewer pipe inspection crawler
Waterproof Sewer 20000mm CCTV Pipe Inspection Equipment
CCTV Pipe Inspection Equipment Introduction

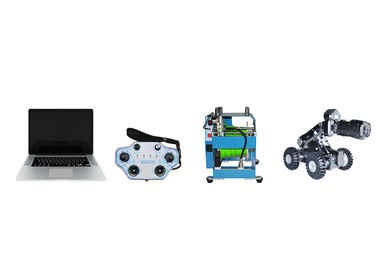

CCTV Pipe Inspection Equipment is a newly designed crawler system, specially for US, UK and European market. It can inspect pipe diameter from 125-2000mm, use only one crawler to inspect the most of te pipes, reduce the cost. It is compoposed of a crawler, pan&tilt camera, automatic cable drum and control units. The crawler can match different types of cameras(I.e. pan & tilt camera, axial camera, fish-eye camera) according to diffrerent requirements.
This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment, check the internal cracks, corrosion, weld, plugs and other unusual circumstance. It has been widely used in detection fields such as municipal pipelines, electricity, telecommunications, field investigations and disaster rescue.
CCTV Pipe Inspection Equipment Features:
1. High Definition Camaera, 1920*1080P
2. Portable control unit
3. Windows operation system
4. Powerful crawler drive
5. Interchangeable parts
CCTV Pipe Inspection Equipment Configuration
|Standard Configuration||Optional Parts|
|TVS15 crawler||CAM-70 camera|
|CAM-90 pan & tilt camera||JT360 fish-eye camera|
|Automatic cable drum||Manual cable drum|
|MK4 control unit||Wheel support|
|Manhole hook, tool box and other accesories||10" wheel|
CCTV Pipe Inspection Equipment Technical Parameter
Control Unit MK4
1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
Pan&Tilt Camera CAM-90
1. Rotation: 360 degree horizontal, 270 degree vertical
2. 120x zooming, 10:1 optical, 12:1 digital
3. Auto focus, manual adjustment is allowed
4. Digital hidh definition, 1920*1080P
5. Camera lens anti-fogged
7. Laser gauge to measure the defect size
5. Sonde location: 33kHz
Automatic Cable Drum DLPA200HD
1. LCD display panel
2. Three kinds of working mode: auto, manual and auto retrieving only.
3. Standard cable length: 200m
4. Built-in wifi module, wireless tranmission
5. Cable counter meter and auto layering
6. Emergency stop
Fish-eye camera JT360
1. View360 degree sight inside the pipe.
assembed on the crawler to inpsect pipe diamter above 1000mm, equipped with 8" wheels or 10" wheels.
Remote Control APP.
The software can be installed into the laptop or tablet, controls the crawler wireless.
