Laptop Controller CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes

Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes
Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes

Large Image :  Laptop Controller CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes

Product Details:
Place of Origin: China
Brand Name: Trio-Vision
Certification: CE,FCC, ISO9001
Model Number: TVS-15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T
Supply Ability: 20units per month
Detailed Product Description
Pipe Diameter: 150-1000mm Operation System: Windows, Wincan Inside
Name: CCTV Pipe Inspection Cameras Display: Laptop
Cable Drum: Automatic, 300m Certification: CE,FCC, ISO9001
High Light:

8.4'' pipeline inspection robot

,

800mm pipe crawler robot

Laptop Controller CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes





This pipe inspection camera system is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 12 adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.

The monitor and additional controls are built into a compact, waterproof, lightweight plastic case making it easy to transport.The 8.4'' LCD displays a crisp live color image,with an adjustable sun hood for outdoor inspections.



CCTV Pipe Inspection Cameras  Features:



1. Windows operation system

2. Portable control unit

3. CANBUS transmission

4. Powerful crawler drive



CCTV Pipe Inspection Cameras Configuration



Standard Configuration Optional Parts
TVS15 crawler JT60 axial camera
High definition pan & tilt camera JT360 fish-eye camera
Automatic cable drum Manual cable drum
MK4 control unit/laptop PA500 portable movable power
Manhole hook, tool bag and other accesories





Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes 0


Technical Parameter





Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes 1



Control Unit MK4



1,Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
Controls the crawlers speed, direction, light intensity, camera focus, rotation, camera movement, clutch control, auxiliary light controls.
Displays: Date, time, inclination, data, with text editing facility.
Screen display size: 10.1” LCD , resolution: 1920*1080
Power adapter:AC110-220V 50/60Hz

Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes 2

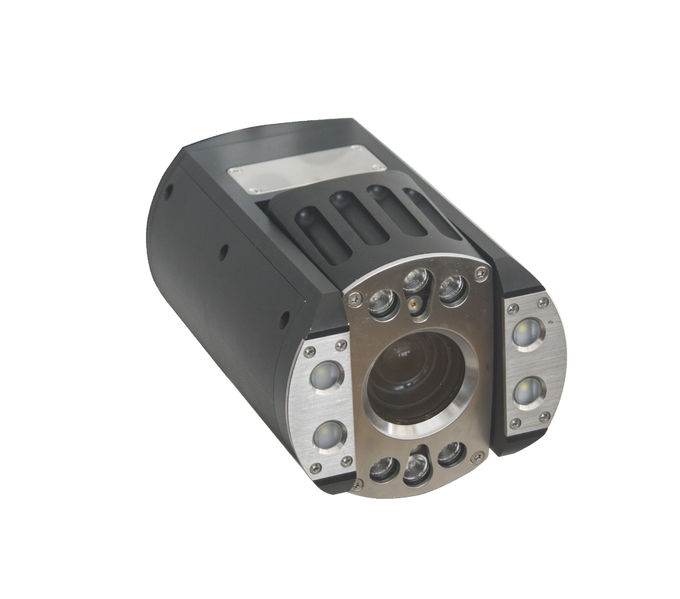

Pan&Tilt Camera JT-90



rotation 360°,vertical 270°
One key center
Auto/manual focus
120:1 zooming (10:1 optical, 12:1
Digital high definition camera 1080P
Defogged lens
Laser gauge to measure the defect size(50mm wide)(optional)
4 sets of auxiliary light to satisfy large pipe inspection
Size: 90*150mm
Weight: 1.5kg



Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes 3

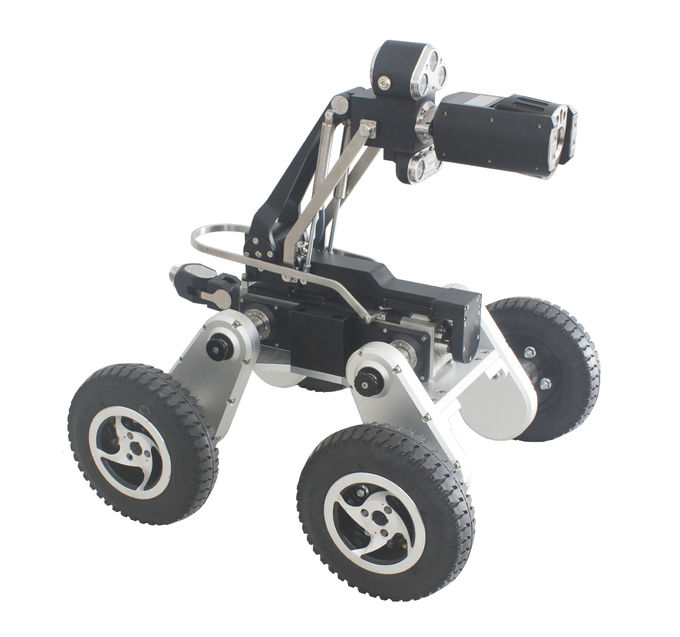

Cralwer TVS-15




Six wheel drive, two motors (power 150W)
The crawler is designed for pipe diameters from 150mm up to 600mm with electric elevator
Pressure sensor, inclination sensor, incline curve display, 512Hz,640Hz,8KHz,33KHz sonde location
Material: brass, nickel plated, stainless steel, aluminum. Dimension: 516*260*230mm
Weight: 10kg.



Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes 4

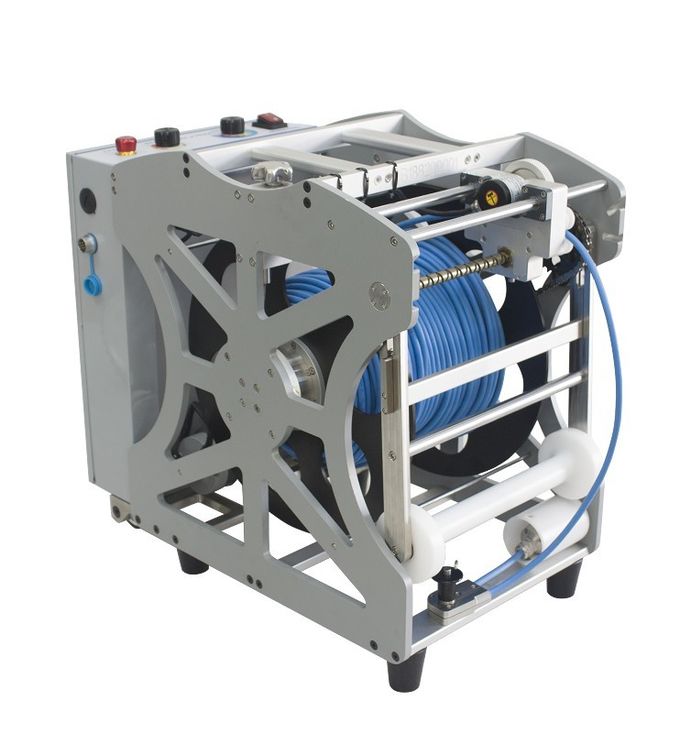

Automatic Cable Drum DLPA300



Automatic cable drum, three modes to allow for the drum to wind up cable
Cable length 300m.
7mm, multi-core cable, with Polyurethane sleeve and Kevlar Reinforced.Alluminum enclosure, cable routing, meter-counter,built-in WIFI transmitter,
Weight: Approx. 50kg

Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes 5

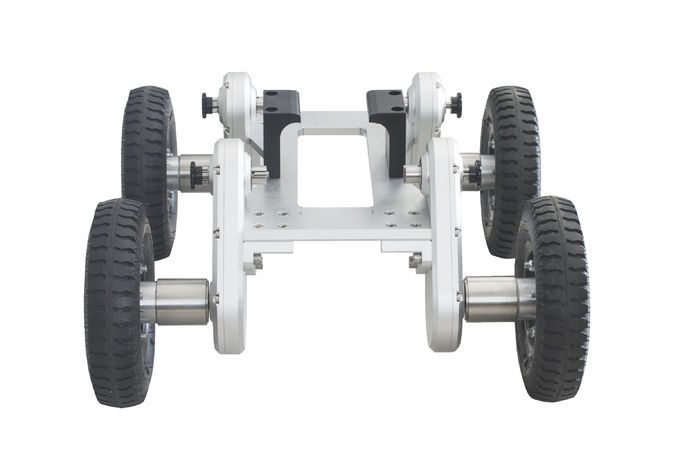

Extended support





Expanded support, extendable inspection pipe diameter to 1200mm.



Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes 6

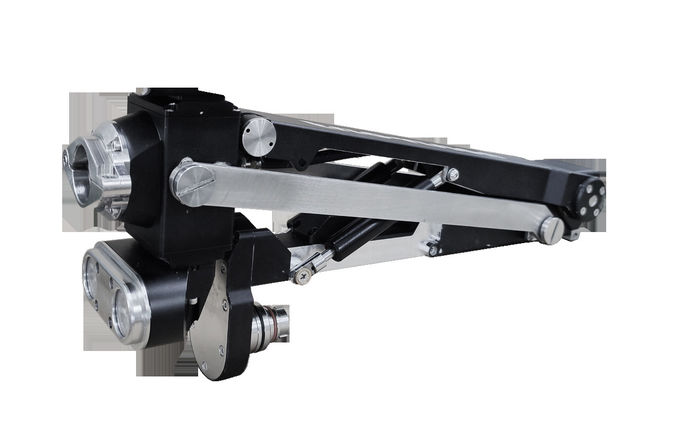

Motorised elevator





Motorised elevator, and is equipped with auxiliary lights, and high definition rear view camera, resolution: 1080P





Remote Control APP.
Install our MK3 Remote Control APP. on your cellphone or Pad developed by Android system, you can remote control MK3 control unit.
Laptop Controller  CCTV Pipe Inspection Cameras High Definition for 150-1000mm pipes 7
