HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation

HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation
HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation

Large Image :  HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation

Product Details:
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-2000E
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 20units per month
Detailed Product Description
Name: CCTV Pipe Inspection Cameras Resolution: HD 1080P
Inspection Range: 300-2000mm Camera Rotate: 360 Degree Rotation
Control: Joystick PC Control: Yes
High Light:

HD 1080P CCTV Pipe Inspection Cameras

,

360 Degree CCTV Pipe Inspection Cameras

,

HD 1080P cctv sewer camera

HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation



CCTV Pipe Inspection Cameras Key Function



1. Water-proof ,can be used in different place

2. wheel drive,forward ,backward,turn freely .

3. With ambient light and adjustable illumination

4. Lens 360°infinite rotation ,auto zoom focusing ,without death angle

5. Focus length is adjustable ,no limited by space size

6. Video,photo can be set at will.Video can be storage and replay.



CCTV Pipe Inspection Cameras Technical Parameter

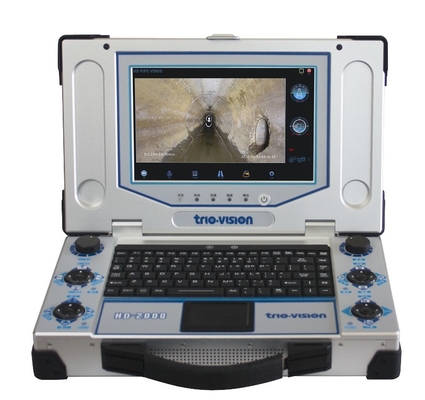

Controller HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation 0 1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000 HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation 1 1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size
Cralwer TVS-800 HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation 2 1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120 HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation 3 1,Manual cable drum
2,standard length: 120m


Joystick HD 1080P CCTV Pipe Inspection Cameras 360 Degree Rotation 4

(1)high beam brightness adjustment

(2)camera control, left/right/up/down

(3)camera zoom in/out/focus near/far/center

(4)power switch

(5)elevator up/down/clutch/rear sight/camera light adjustment

(6)crawler direction control, forward/backward/left/right

(7)crawler speed control

(8)USB

(9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected



CCTV Pipe Inspection Cameras Configuration



Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT-2000 pan & tilt camera JT360 fish-eye camera
Manual cable drum Automatic cable drum
Windows Laptop PA500 portable movable power
Joysitck
