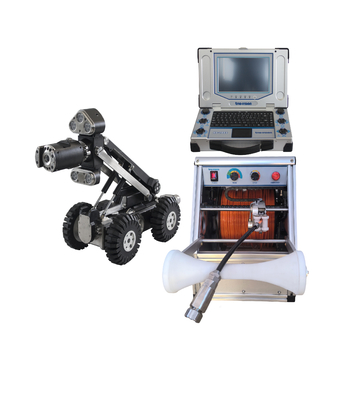

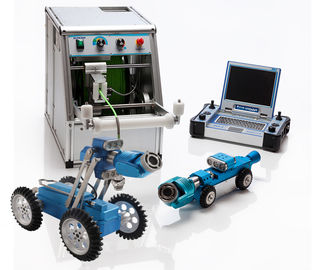

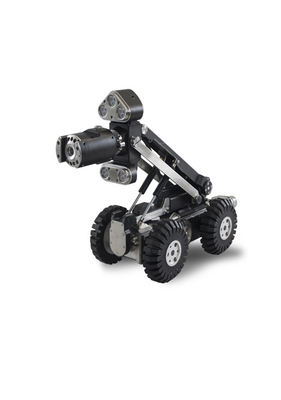

HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System

HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System
HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System

Large Image :  HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System

Product Details:
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-15
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 20units per month
Detailed Product Description
Name: CCTV Pipe Inspection Equipment Cable Length: 120meter
Inspection Range: 300-2000mm Monitor: Laptop Or Controller
System: Windows Control: Joystick Or Controller
Cable Drum: Manual Camera: 360 ° Rotate Camera
High Light:

HD CCTV Pipe Inspection Equipment

,

360 Degree CCTV Pipe Inspection Equipment

,

360 Degree Drain Camera System

HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System


Cctv Pipe Inspection Cameras Brief introduction:



CCTV Pipe Inspection Robot is mainly used in electricity, municipal, traffic, petrifaction, construction and it is suitable for inspecting the boiler, pipeline, underground cable channel and places will do harm to human or forbid man-entry. The situation inside the pipe will be recorded and displayed on the monitor screen; it also facilitates working personnel for effective observation, detection, quick analysis and diagnosis.



Cctv Pipe Inspection Cameras Features:



1. High Definition Camaera, 1920*1080P

2. Portable control unit

3. Windows operation system

4. Powerful crawler drive

5. Interchangeable parts

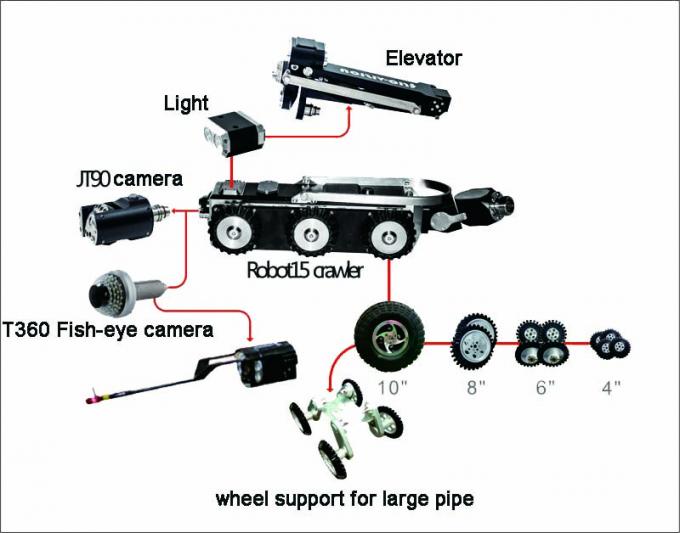

Cctv Pipe Inspection Cameras Configuration



Standard Configuration Optional Parts
TVS15 crawler CAM-70 camera
CAM-90 pan & tilt camera JT360 fish-eye camera
Automatic cable drum Manual cable drum
MK4 control unit Wheel support
Manhole hook, tool box and other accesories 10" wheel





HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System 0


Technical Parameter

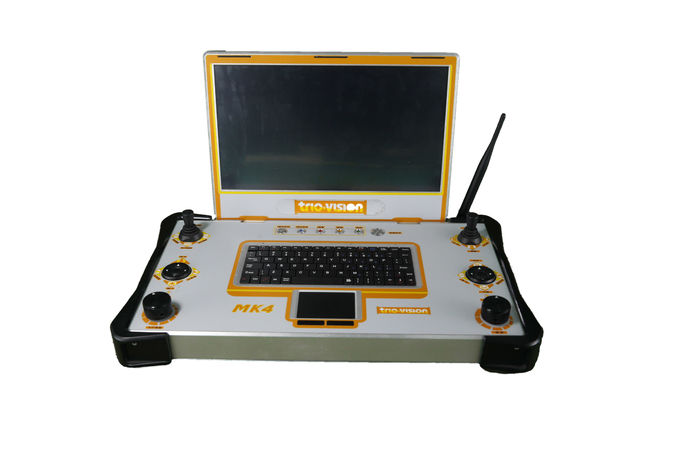

Control Unit MK4

HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System 1





1. Pad Style Control Unit, 8.4' Touched LED, Readable in Sun Shine, 1024*768 resolution, 4.1kg
2. Win10 system, 128GB SSD, Record video in site, 100+ hours video can be saved.
3. Camera position, elevator position in Graphs
4. Inclination report in site.
5. System status, work parameter can be query.



Pan&Tilt Camera CAM-90HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System 2





1. Rotation: 360 degree horizontal, 270 degree vertical

2. 120x zooming, 10:1 optical, 12:1 digital

3. Auto focus, manual adjustment is allowed

4. Digital hidh definition, 1920*1080P

5. Camera lens anti-fogged
6. Laser scanning the pipe diameter and distortion

7. Laser gauge to measure the defect size
8. Camera light can be adjusted to adapt different pipes.

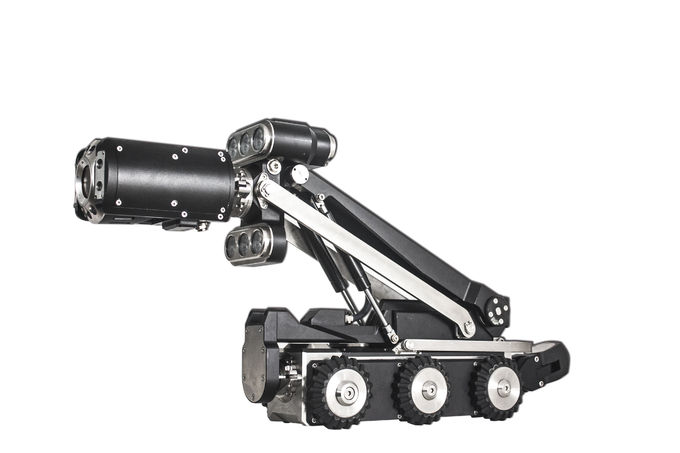

Cralwer TVS-15

HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System 3


1. Waterproof to IP68
2. Working temperature: -10ºC~50ºC
3. Suitable pipe diameter: 125mm~2000mm
4. Drive: two DC motor, six wheels

5. Sonde location: 33kHz
6. Inclination: mesurement scope ±45 degree
7. Climbing: max. climb degree about 50° according to diffrerent pipe status
8. High definition rear sight camera and light: inspect crawler backwards and cable retreiving

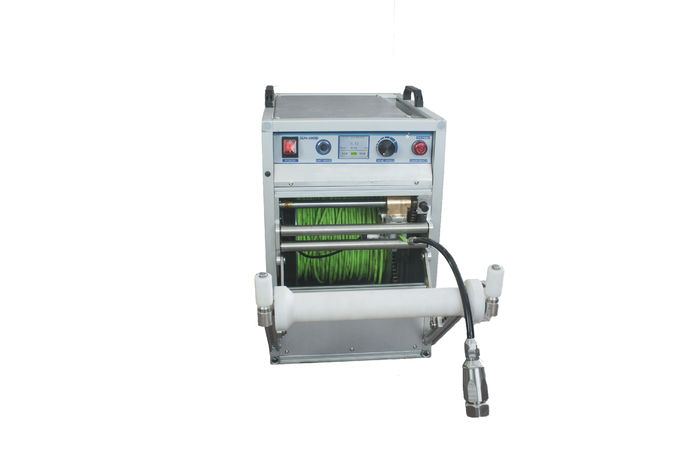

Automatic Cable Drum DLPA200HD

HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System 4





1. LCD display panel

2. Three kinds of working mode: auto, manual and auto retrieving only.

3. Standard cable length: 200m

4. Built-in wifi module, wireless tranmission

5. Cable counter meter and auto layering

6. Emergency stop



Fish-eye camera JT360

HD CCTV Pipe Inspection Equipment 360 Degree Drain Camera System 5





1. View360 degree sight inside the pipe.
2. 92 PCS high-light LED lamps, illumination reaches to 200lm
3. Resolution: 3000k pixel, high quality picture.
4. Waterproof: IP68, workable 10 meters underwater.
5. The videos and pictures recorded by MK3 full-view camera can spread full-range picture inside the pipe by PanoProfile 3D software, and generate 2D profile picture, in order to realize accurate measurement of pipe defects, install 3D mould, and create inspection report.



Wheel support





assembed on the crawler to inpsect pipe diamter above 1000mm, equipped with 8" wheels or 10" wheels.
