120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance

China Trio-Vision Technology Co.,Ltd certification
China Trio-Vision Technology Co.,Ltd certification
High quality product, fast responding for my every inquiry, thanks for your biggest support!,

—— Mr. Luo

Every time send you email, we can always get reply at the first time,you provide us the best service, thank you!

—— Mr. Bowley

Your products have high cost-performance, it is even better than some of the US manufacturer, it is my correct choice to choose you as partner!

—— Mr. Zhang

Your HD pole camera is very fashion and with high reliable quality, the customers like it very much. I believe our cooperation will better and better in the future.

—— Mr. Richard

I'm Online Chat Now

120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance

120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance
120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance

Large Image :  120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance

Product Details:
Place of Origin: China
Brand Name: Trio-Vision
Model Number: TVS-2000E
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: CARTON
Delivery Time: 4-8 weeks
Payment Terms: T/T, L/C
Supply Ability: 20units per month
Detailed Product Description
Type: CCTV Pipe Inspection Equipment Drum: Manual, Lightweight
Control: Joystick And Compuuter Transmission: Wifi
Cable Length: 120m Inspection: Long Range Inspection
High Light:

120m CCTV Pipe Inspection Equipment

,

Long Distance CCTV Pipe Inspection Equipment

,

120m cctv sewer camera

120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance



This CCTV Pipe Inspection Equipment is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.



CCTV Pipe Inspection Equipment Features:



1. 360 ° rotate of camera

2. Windows laptop

3. Anti-fogged camera lens

4. Laptop and joystick control

5. Brightless adjustable



CCTV Pipe Inspection Equipment Configuration



Standard Configuration Optional Parts
TVS800 crawler JT60 axial camera
JT-2000 pan & tilt camera JT360 fish-eye camera
Manual cable drum Automatic cable drum
Windows Laptop PA500 portable movable power
Joysitck









120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance 0



Technical Parameter



Controller 120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance 1 1. Available in any notebook computer as the control system
2. Wireless control
3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color.
4. Front and rear sights display on the same interface at the same time.
Pan&Tilt Camera JT2000 120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance 2 1,360 degree, no limited rotate
2,The lens heating can prevent fog
3,Camera light can be adjusted
4,Maximum Brightness upgrade 50%, More suitable for small diameter
5,Optional Laser, calibrate defect size

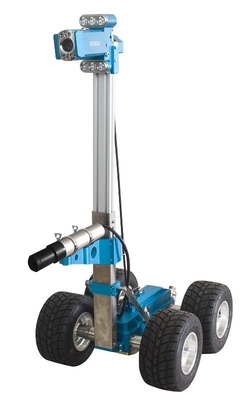

Cralwer TVS-800 120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance 3 1. Working temperature: -10ºC~50ºC
2. Suitable pipe diameter: 50mm~2000mm
3. Drive: two DC motor
4. Elevator: electric elevator
5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree
6. Speed: adjustable speed, max. 32m/min
7. Direction: forward, backward, left, right
8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light.
9. Climbing: max. climb degree about 50° according to diffrerent pipe status
10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving
Manual Cable Drum DLPM120 120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance 4 1,Manual cable drum
2,standard length: 120m


Joystick 120m CCTV Pipe Inspection Equipment Sewer Camera Long Distance 5

(1)high beam brightness adjustment

(2)camera control, left/right/up/down

(3)camera zoom in/out/focus near/far/center

(4)power switch

(5)elevator up/down/clutch/rear sight/camera light adjustment

(6)crawler direction control, forward/backward/left/right

(7)crawler speed control

(8)USB

(9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected
