360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair

  • 360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair
  • 360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair
  • 360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair
  • 360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair
  • 360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair
Place of Origin China
Brand Name Trio-Vision
Model Number TVS-2000HD
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details CARTON
Delivery Time 2-4 weeks
Payment Terms T/T
Supply Ability 100 units per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Remote Control Available Warranty 1 Year
Rotation 360 Degree Application Sewer/Drain Pipe/Mainline Inspection
Waterproof Rating IP68 Operation System Windows/Android
Highlight

360 degree rotation pipe inspection camera

,

CCTV pipe inspection system with warranty

,

comprehensive pipe maintenance camera system
Leave a Message
Product Description

Product Description:

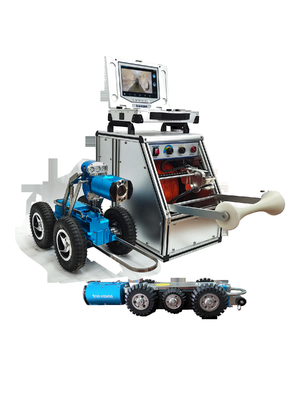

TVS-2000 HD high definition pipe inspection crawler is for sewer/drain/mainline video inspection, and suitable for pipe diameter is from 150-1500mm. The system is composed of controller(Android of Windows control), crawler, camera, cable drum. By using Wifi transmission, it can controlled by tablet or laptop, more convinient and portable.

Features:

1)High definition camera with 1080P definition
2) Wireless control by tablet or laptop
3) Windows/ Android control software
4) Sonde location
5) Pan and tilt camera, pan 360°, tilt 2 * 90°
6) 10:1 optical, 12:1 digital zoom



Technical Parameters:

360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair 0
Control Unit ZKQ-300HD

  • Integrated industrial controller, high definition LCD touch screen
  • 10” LCD, sunshine readable, built-in collecting and analysis software
  • Windows 10 system, Intel i series CPU, large capacity storage, 256G solid hard disk
  • Waterproofed keyboard, full physical key operation, easy operation
  • Portable design, convenient for mobile and outside working.
  • Interface: VGA*1, USB*2, HDMI*1, ethernet*2, data*1
  • Weight: 5.5kg
  • Dimension: 405*265*114mm
360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair 1
Pan&Tilt Camera JT-100HD

  • High definition camera, embedded adjustable LED light
  • Axial 360° rotation, radial 270° rotation
  • 120 times zooming(12:1 digital, 10:1 optical)
  • Manual and auto focus
  • Anti-fogging camera lens
  • Laser gauge (optional)
360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair 2

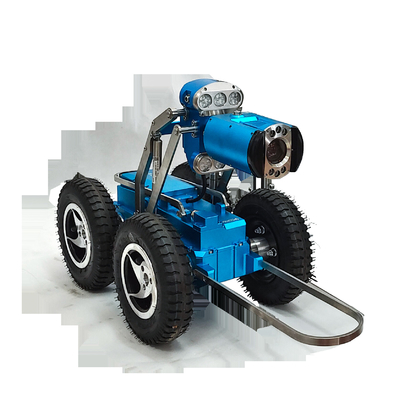

Cralwer ROBOT-300HD

  • For pipe diameter from 250-1200mm
  • Driven by two brushless DC motor, powerful drive
  • Electrical elevator, 6 sets of auxiliary lights, HD rear camera lighting
  • Forward, backward and steering dumping warning
  • Climbing angle 45 degree
  • Waterproof: IP68, 10m under water
  • Multi-frequency sonde(512Hz, 640Hz, 8KHz, 33KHz) optional
  • Weight: 16kg
  • Dimension: 732*231*173mm
360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair 3

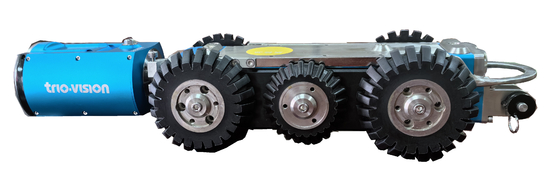

Cralwer ROBOT-150HD

  • Six wheel drive, for DN125-300mm
  • Multi-frequency sonde(512Hz, 640Hz, 8KHz, 33KHz) optional
  • Weight: 9.6kg
  • Dimension: 426mm*203mm*134mm
360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair 4

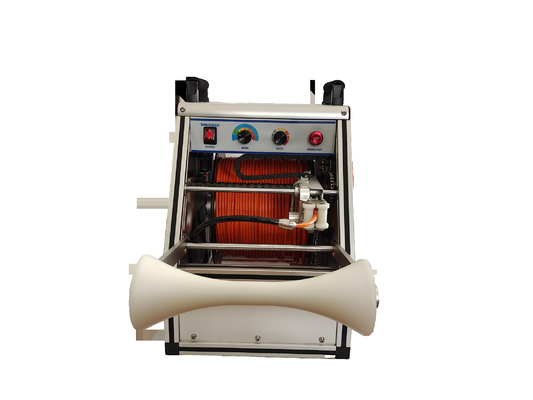

Automatic Cable Drum
DLPA-300HD
  • Three working modes: auto, manual and cable retrieving only
  • Video signal and control command, transmission without delay and loss
  • Auto distance measurement with high accuracy meter counter, emergency stop and brake
  • Portable design, convenient for moving and outside working
  • Cable length: standard 120m, max. 300m optional
  • Dimension: 580*390*520mm
  • Weight: 50kg
360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair 5
Manual cable drum DLPM-150HDE(Optional)
  • Embedded battery for power supply, working time over 8hrs
  • No delay and loss transmission of video signal and control command
  • Emergency stop and brake
  • Manual cable retrieving and auto layering
  • Portable design, convenient for moving and outside working.
  • Dimension: 510*400*450mm
  • Weight: 39kg

360 Degree Rotation Pipe Inspection Camera System for Comprehensive Pipe Maintenance and Repair 6
